• RC7611

RC7611

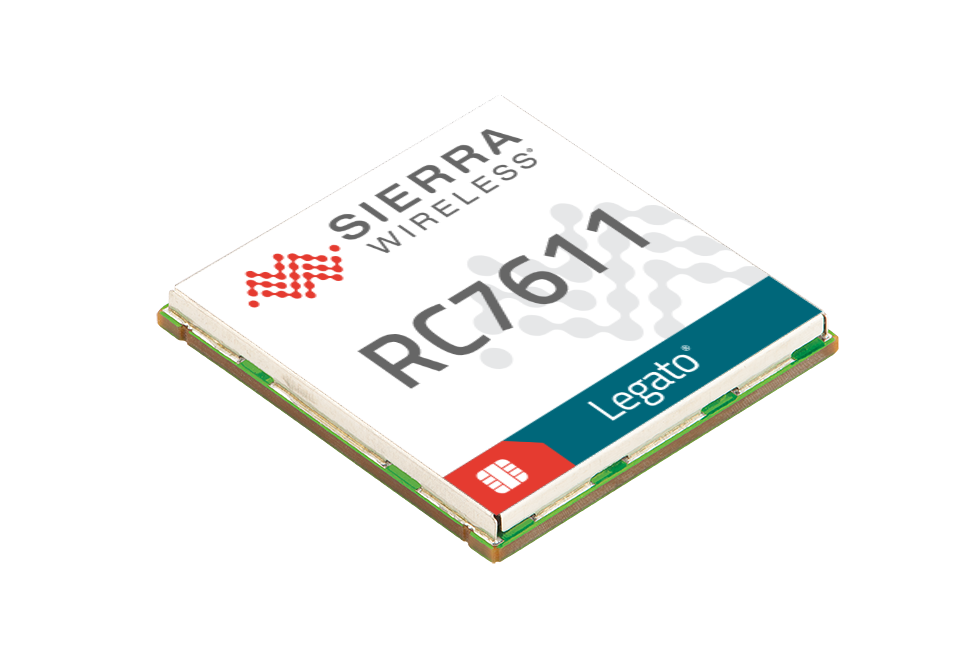

RC7611 IoT Module

Air Interface:
4G LTE Cat-4
Region:Americas
Carrier:
Sierra Wireless, Verizon, AT&T, T-Mobile, Sprint
型号 : RC7611

Reliable LTE Cat-4 M2M connectivity for the Americas

The RC7611 IoT module is part of the RC Series that lowers your total cost of ownership (TCO) with an embedded SIM that is ready-to-connect your devices anywhere in the world.The industrial-grade CF3®
(Common Flexible Form Factor) footprint future-proofs designs, enabling IoT products on the most scalable module platform in the world.
This LTE Cat-4 embedded module is approved on the Band 14 public safety network and is ideal for IoT applications such as public safety, telematics and mission-critical networking applications.





















Specifications

4G LTE
Category
Cat-4
Frequency Bands
B2, B4, B5, B12, B13, B14, B25, B26, B66, B71
DATA SPEED
Peak Download Rate
150Mbps
Peak Upload Rate
50Mbps
LOCATION SERVICES
Satellite Systems
Optional: GPS, Galileo, Glonass, QZSS, BeiDou
EMBEDDED SOFTWARE
Firmware
Secure boot, Pre-certified firmware
Audio
Codec: HR, FR, EFR, AMR, Digital Audio, DTMF, Echo Cancellation & Noise Reduction, PCM, VoLTE
System Drivers
Windows® 10, Linux Driver: Standard ECM, Android RIL
INTERFACES
UART
1 X 8-wire
USB
1
I2C
1
ADC
2
GPIO
8
Tx ON Indicator
1
SIM interface 1.8V/3V
1
HARDWARE
CF3 Form Factor
LGA, Snap-in socket option
Dimensions
22x23x2.5mm
Antenna
Diversity, MIMO
Temperature Range
Industrial Grade: -40°C / +85°C
APPROVALS
Carrier
AT&T, Sprint, T-Mobile, Verizon, Sierra Wireless
Regulatory
FCC, GCF, IC, PTCRB
EMBEDDED SIM
EMBEDDED SIM
Optional Ready-to-Connect (Sierra Wireless USIM)
CLOUD SERVICES
CLOUD SERVICES
Free Unlimited FOTA upgrades, Connectivity Management option, Device Management option
