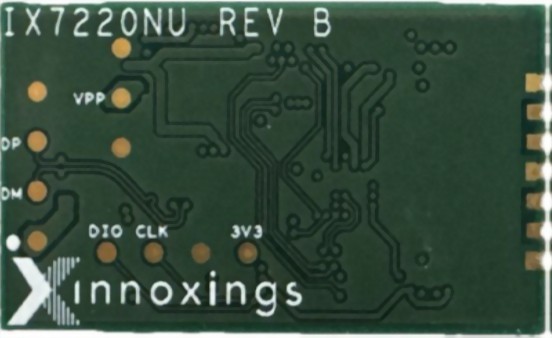

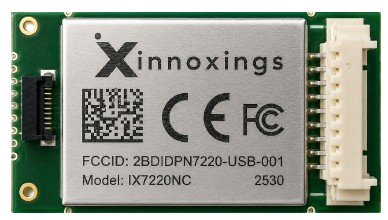

InnoXings IX7220NC is full featured NFC module designed for integration in portable equipment,
it is Optimized for low power consumption in different modes (standby, active).
As an NCI 2.2 compliant NFC controller with high RF output (2 W) and high receiver sensitivity,
the IX7220NC is a robust solution for payment terminals and all readers that must generate a strong
RF field in a difficult environment. In addition to the reader/writer functionality, the device supports
the host card emulation of ISO14443-A cards up to 848 kbit/s.
The IX7220NC product family supports highly innovative and unique features which do not require
any host controller interaction. These features include dynamic power control (DPC),
adaptive waveform control (AWC), and fully automatic EMD error handling.

◼NFC Reader/Writer

◼NFC Forum Type 2/3/4/5

◼ISO/IEC 14443 A/B, FeliCa, ISO/IEC 15693

◼5V Input Supply 3.3V (Typ.)

◼Operating Temperature: -20°C ~ +85°C

◼Android 13+ Support

◼EMVCo 3.1 Compliance

◼NFC Forum v13 Compliance

◼MIFARE Classic Hardware Crypto

◼Multi-Protocol NFC Support

◼Dimension :29.6mm X 16.9mm X 3.9mm

◼Support Interface USB2.0

◼Certifications: FCC、CE

◼Payment Terminal

◼Vending Machine

◼E-Vehicle Charging Station

◼Ticket Validator
